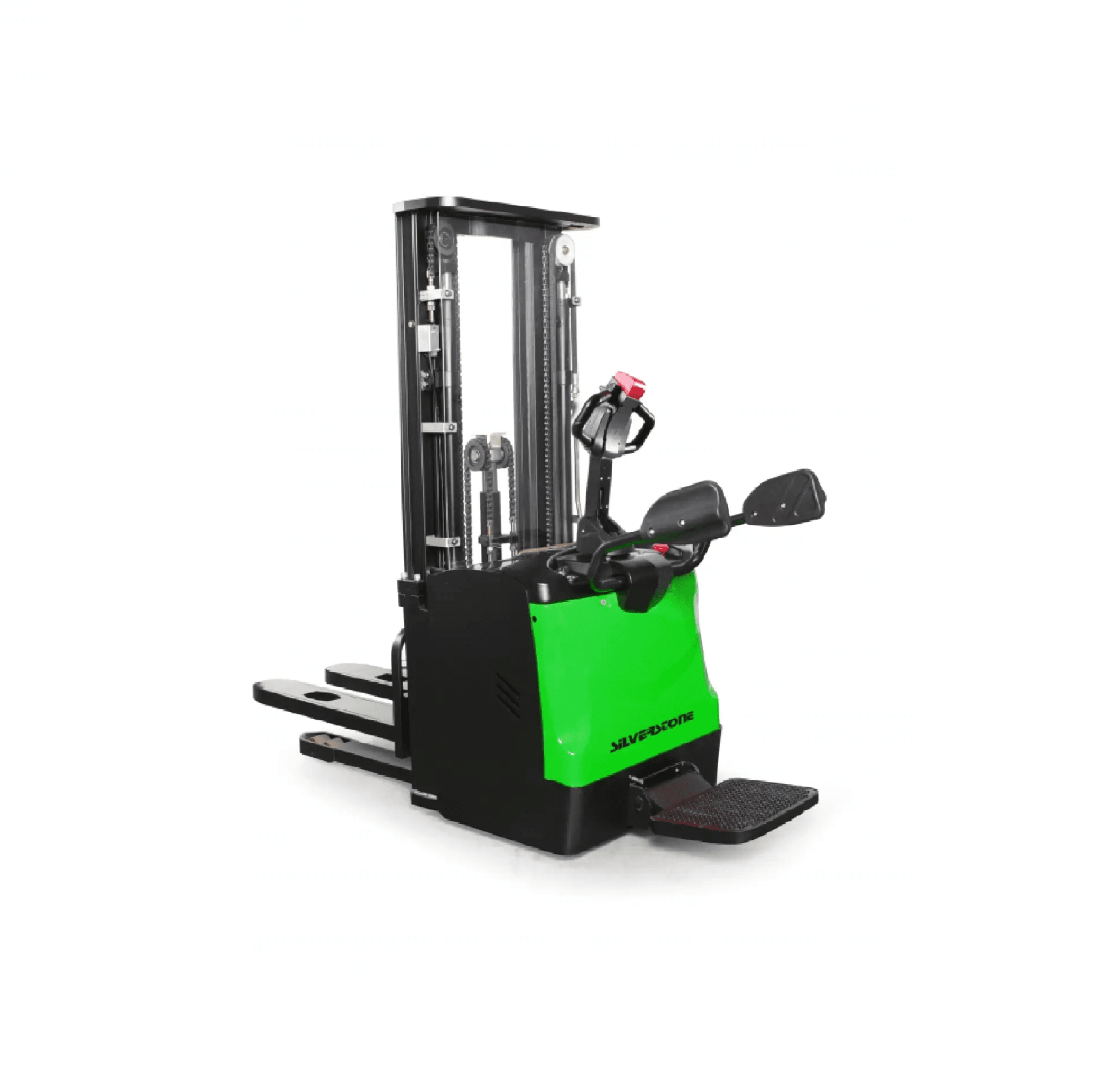

SILVERSTONE ELECTRIC STACKER, EPS,PROP,VALVE,
Silverstone stacker with power steering and proportional valve as standard. The stacker is equipped with proven technology including lift motor from Bucher and Zapi steering system. The focus is on comfort and economy where PV valve allows precision when lowering the load and where the power steering ensures that you have energy throughout the day.
- Eps
- Proportional Valve
- Capacity (kg) 1600
- Load center 600 mm
- Ground clearance 28 mm
- Outer fork width 600 mm
- Weight (kg) 1280
- Wheel type PU/PU
- Steering wheel Ø230×75
- Fork wheel Ø85×70
- Balance wheel Ø130×55
- Wheels (x=driving wheel) 1x+1/4
- Turning radius 1730/2090 mm
- Travel speed, load/no load 8,0 – 9,0
- Lowering speed, load/no load 25 – 30 s
- Lift motor (kW) 3,0
- Free lift
- Lifting height 5000
- Height with mast in highest position 5460 mm
- Control system ZAPI
- Fork dimensions (LxWxH) 1150x190x60 mm
- Battery (V/Ah) 24/210
- Battery type Lithium Maintenance free
- Brakes Electromagnetic
- Lifting speed (cm/s) 11 – 17
- Aisle width with 800×1200 pallet 2557/2935 mm
- Dimensions (LxWxH) 2495x850x2020 mm
